NO. 363 Heated Shell Curing Accessory

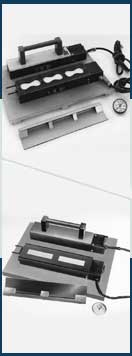

For curing tensile and transverse shell specimens. Unit consists of two plates, each equipped with two internal heating units and a thermostat for control. Used with No. 362 Shell Tensile Accessory (top photo) and No. 642 Shell Transverse Accessory (lower photo). May be used with No. 642 or 642-P Shell Transverse Pattern (for hot distortion specimens). Multiple-specimen mold is placed on bottom heating plate and filled with sand. After strike-off, second heater plate is placed over mold and specimens are cured at a controlled temperature. Includes base pallet and magnetic thermometer. Does not include patterns or hopper-strike off.

Specifications:

Power:

Model 1....115V, 50/60 Hz, 1-phase
Model 2....Model 1 with transformer for 230V, 50/60 Hz, 1-phase

Temperature Range:..........Room to 600°F. (315°C)
Heating Surface:................10 x 2¾ in. (254 x 70 mm)
Net weight:..........................25 lb. (11 kg)
